This is a customer we are very familiar with in Russia. This time he purchased a batch of ASTM A182 F316L nipolet. In his previous orders, he had special requirements for the marks and marks of the goods, because they needed to get materials from other suppliers and then concentrate the goods to the agent, so they needed the goods to be identifiable by marks. Contact us
What are Nipolet?
ASTM A182 F316L nipolet is a kind of pipe fittings made of forged stainless steel 316L, mainly used for branch connections in highly corrosive piping systems, with excellent corrosion resistance and structural strength, widely used in chemical, petrochemical, offshore engineering and other fields.
Nipolet is a variant of Branch Connectors and typically have a longer neck length than standard Branch Seats to provide better welding space or to facilitate subsequent installation of special equipment. Especially suitable for corrosive environments when ASTM A182 F316L is used.
Inspection Photos
Inspection of ASTM A182 F316L Nipolet
Dimensional Inspection:
Ensure that the geometry of the standoffs meets the requirements of the purchase order, drawings, or related standards (e.g., MSS SP-97, ASME B16.11).
Calipers, Micrometers, Height Gauges: Measure critical dimensions such as outside diameter, inside diameter, wall thickness, extension neck length, thread size, and overall length.
Visual and Surface Quality Inspection:
Inspect the surface of the standoffs for defects that affect performance or appearance.
Check for smooth surfaces, cracks, inclusions, delamination, reskinning, scratches, rust or excessive oxidation.
Marking and Stamping Inspection:
Ensure that the markings on the product are clear, correct, in accordance with the standard requirements, and contain all necessary traceability information.
Method: Visually check that the following are clearly engraved or printed on the product:
Material grade (e.g. F316L)
Manufacturer’s name or logo
Furnace batch/lot number
Dimensions and pressure ratings
Specification of Stainless Steel Nipolet
| End Type | PE and TE |
| Size Range | 1/2″ – 4″ / DN15 – DN100. |
| Pressure Rating | XS, SCH 160 |
| Standard | MSS SP-97 |
| Stainless Steel | ASTM A182 F304/304L/304H, 316/316L, 310S, 317,347,904L |
ASTM A182 F316L Nipolet Chemical Composition
| CHEMICAL | LIMITS | C | Mn | P | S | Si | Ni | Cr | Mo | N |
| ASTM A182 F316 | MIN | 10.0 | 16.0 | 2.00 | ||||||
| MAX | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 14.0 | 18.0 | 3.00 | 0.10 | |
| ASTM A182 F316L | MIN | 10.00 | 16.0 | 2.00 | ||||||
| MAX | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 15.00 | 18.0 | 3.00 | 0.10 |
ASTM A182 F316L Nipolet Mechanical Property
| MATERIAL | ASTM A182 F316 | ASTM A182 F316L |
| T.S (MPA) | 515 min | 485 min |
| Y.S (MPA) | 205 min | 170 min |
| EL % | 30 min | 30 min |
| R/A % | 50 min | 50 min |

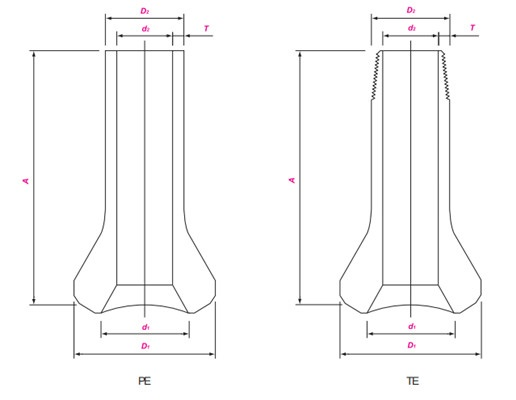

MSS SP-97 Nipolet Dimensions
| DN | NPS | DN | NPS | A | D2 | D1 | d1 | ||
| XS | SCH160 | XS | SCH160 | ||||||
| 20~900 | 3/4~36 | 15 | 1/2 | 89 | 21.3 | 38 | 47 | 24 | 19 |
| 25~900 | 1~36 | 20 | 3/4 | 26.7 | 47 | 53 | 30 | 25 | |
| 32~900 | 11/4~36 | 25 | 1 | 33.4 | 56 | 63 | 36 | 33 | |
| 40~900 | 11/2~36 | 32 | 1 1/4 | 89 | 42.2 | 66 | 72 | 45 | 38 |
| 50~900 | 2~36 | 40 | 1 1/2 | 48.3 | 75 | 83 | 51 | 49 | |
| 65~900 | 21/2~36 | 50 | 2 | 60.3 | 90 | 104 | 65 | 59 | |
| 80~900 | 3~36 | 65 | 2 1/2 | 89 | 73.0 | 105 | – | 76 | – |
| 90~900 | 31/2~36 | 80 | 3 | 88.9 | 124 | – | 94 | – | |
| 125~900 | 5~36 | 100 | 4 | 114.3 | 154 | – | 121 | – | |
Functional Advantages of Extended Structures
Facilitates Insulation Installation: This is the main purpose of the extension. The extra length allows the branch connection to extend beyond the insulation of the main line, facilitating the laying and sealing of insulation and avoiding the formation of insulation blind spots or weak points in the area of the standpipe block.
Improved Welding Access: Extended necks provide greater clearance and better access for welding operations on mains and branches, especially in narrow or restricted installation environments.
Reduced Stress Concentration: Properly designed extension necks help smooth the transition of stresses, which may further optimize the overall structural strength of the standpipe seat.
Better Coating/Lining Continuity: The extended design allows for better continuity of the main line’s corrosion protection coating or lining in the branch connection area, providing more complete corrosion protection.
Applications
ASTM A182 F316L nipolets are widely used in industries where corrosion resistance, structural integrity, and cleanliness are critical:
Oil & Gas – Offshore platforms, subsea systems, and refineries
Chemical Processing – Acidic and chloride-rich piping systems
Marine & Shipbuilding – Seawater piping and ballast systems
Pharmaceutical & Food Processing – Hygienic pipe routing and process automation
Power Plants – High-temperature, high-pressure steam lines
