ASME B18.2.1 Standard Overview: Scope & Applicable Bolt Types
ASME B18.2.1 is the authoritative American National Standard for inch-series bolt dimensions, covering industrial, mechanical, and piping fasteners. Generally, it applies to some common bolt types: hexagon head, square head, heavy hexagon head bolts, as well as their finished/unfinished versions.
For professionals tasked with verifying ASME B18.2.1 inch bolt dimensions, compliance is non-negotiable. It guarantees cross-supply-chain interchangeability of bolts and ensures adherence to safety thresholds for high-stress applications, making it an indispensable reference for engineers, procurement specialists, and fabricators.
Key Terms in ASME B18.2.1 Bolt Dimension Charts
- Nominal Diameter (d): Reference size (in inches, e.g., ½”, ¾”) for ordering, not exact measured diameter.
- Thread Length (LT): Measured from the bolt head’s underside to thread end; ASME B18.2.1 sets minimum lengths by overall bolt size.
- Wrench Opening Width (S): Distance across bolt head flats, determining socket/wrench size (critical for torque application).
- Head Height (H): Top-to-underside measurement, ensuring tool engagement and avoiding component interference.
- Tolerance Class: Allowable size deviation (e.g., 2A for external threads) for fit with nuts/tapped holes.
Step-by-Step Guide: Verify Inch Bolt Dimensions per ASME B18.2.1
Follow this systematic process for accurate dimension checking:
- Identify Bolt Type & Nominal Size: Confirm head style (hex, square, heavy hex) and nominal diameter (marked on the head or via drawings).
- Locate the Correct ASME B18.2.1 Table: Match the bolt head type to the standard’s table (e.g., Table 1 for hex bolts, Table 2 for square bolts).
- Match Overall Bolt Length: Measure from head top to shank end, then find the corresponding row (sorted by diameter and length) in the table.
- Cross-Check Key Dimensions: Use calibrated calipers/micrometers to compare measured values (head height, wrench width, thread length) to table specs.
- Verify Tolerance Compliance: Ensure measurements fall within ASME B18.2.1’s allowable ranges – non-compliant bolts risk fit/performance issues.
Critical ASME B18.2.1 Dimensions: Head, Shank & Threads
Head Dimensions
Wrench opening width (S) varies with bolt type: a ½” nominal hex bolt uses a ¾” wrench, while a heavy hex bolt of the same size requires 13/16” for high torque.
Head height (H) is precision-machined to balance tool grip and space constraints.
Shank Dimensions
The unthreaded shank’s diameter (ds) boosts shear strength. ASME B18.2.1 specifies tight tolerances to ensure a snug fit in clearance holes.
Thread Specifications
Referencing ASME B1.1, threads include major diameter (mating with nut minor diameter), pitch (threads per inch, TPI), and minimum thread length (twice nominal diameter + ¼” for bolts ≤6” long).
- ASME B18.2.1 Inch Bolt Tolerance Requirements (Compliance Musts)
Tolerances ensure interchangeability – non-compliance risks equipment failure. Key rules:
- Thread Tolerance: Default class 2A (general-purpose); class 3A for high precision (higher cost).
- Head/Shank Tolerances: ±0.005” to ±0.010” for head dimensions; tighter shank tolerances for finished bolts.
- Non-Compliance Risks: Too-big heads won’t fit tools; too-small shanks lead to loose connections; bad threads strip when under load.
ASME B18.2.1 Full Inch Bolt Dimension Chart

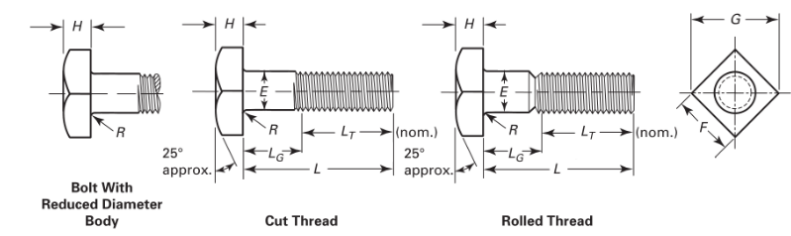

Dimension of Square Head Bolt
| Nominal Size or Basic Product Diameter | E | F | G | H | R | Lr | |||||||||
| Full-Size Body Diameter | Width Across Flats | Width Across Corners | Head Height | Radius of Fillet | Nominal Thread Length for Bolt Lengths | ||||||||||
| Max | Min | Basic | Max | Min | Max | Min | Basic | Max | Min | Max | Min | ≤6 in | >6 in | ||
| 1/4 | 0.2500 | 0.260 | 0.237 | 3/8 | 0.375 | 0.362 | 0.530 | 0.498 | 11/64 | 0.188 | 0.156 | 0.030 | 0.010 | 0.750 | 1.000 |
| 5/16 | 0.3125 | 0.324 | 0.298 | 1/2 | 0.500 | 0.484 | 0.707 | 0.665 | 13/64 | 0.220 | 0.186 | 0.030 | 0.010 | 0.875 | 1.125 |
| 3/8 | 0.3750 | 0.388 | 0.360 | 9/16 | 0.562 | 0.544 | 0.795 | 0.747 | 1/4 | 0.268 | 0.232 | 0.030 | 0.010 | 1.000 | 1.250 |
| 7/16 | 0.4375 | 0.452 | 0.421 | 5/8 | 0.625 | 0.603 | 0.884 | 0.828 | 19/64 | 0.316 | 0.278 | 0.030 | 0.010 | 1.125 | 1.375 |
 1/2 | 0.5000 | 0.515 | 0.482 | 3/4 | 0.750 | 0.725 | 1.061 | 0.995 | 21/64 | 0.348 | 0.308 | 0.030 | 0.010 | 1.250 | 1.500 |
| 5/8 | 0.6250 | 0.642 | 0.605 | 15/16 | 0.938 | 0.906 | 1.326 | 1.244 | 27/64 | 0.444 | 0.400 | 0.060 | 0.020 | 1.500 | 1.750 |
| 3/4 | 0.7500 | 0.768 | 0.729 | 1-1/8 | 1.125 | 1.088 | 1.591 | 1.494 | 1/2 | 0.524 | 0.476 | 0.060 | 0.020 | 1.750 | 2.000 |
| 7/8 | 0.8750 | 0.895 | 0.852 | 1-5/16 | 1.312 | 1.269 | 1.856 | 1.742 | 19/32 | 0.620 | 0.568 | 0.060 | 0.020 | 2.000 | 2.250 |
| 1 | 1.0000 | 1.022 | 0.976 | 1-1/2 | 1.500 | 1.450 | 2.121 | 1.991 | 21/32 | 0.684 | 0.628 | 0.090 | 0.030 | 2.250 | 2.500 |
| 1-1/8 | 1.1250 | 1.149 | 1.098 | 1-11/16 | 1.688 | 1.631 | 2.386 | 2.239 | 3/4 | 0.780 | 0.720 | 0.090 | 0.030 | 2.500 | 2.750 |
| 1-1/4 | 1.2500 | 1.277 | 1.223 | 1-7/8 | 1.875 | 1.812 | 2.652 | 2.489 | 27/32 | 0.876 | 0.812 | 0.090 | 0.030 | 2.750 | 3.000 |
| 1-3/8 | 1.3750 | 1.404 | 1.345 | 2-1/16 | 2.062 | 1.994 | 2.917 | 2.738 | 29/32 | 0.940 | 0.872 | 0.090 | 0.030 | 3.000 | 3.250 |
| 1-1/2 | 1.5000 | 1.531 | 1.470 | 2-1/4 | 2.250 | 2.175 | 3.182 | 2.986 | 1 | 1.036 | 0.964 | 0.090 | 0.030 | 3.250 | 3.500 |

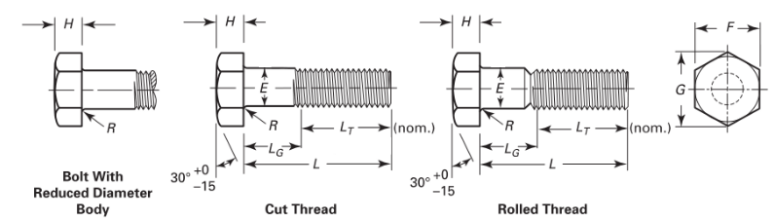

Dimension of ASME B18.2.1 Hex Head Bolt
ASME B18.2.1 Hex Head Bolt Dimensions (Medium Sizes: 1/4”–2”)
| Nominal Size or Basic Product Diameter | E | F | G | H | R | Lr | |||||||||
| Full-Size Body Diameter | Width Across Flats | Width Across Corners | Head Height | Radius of Fillet | Nominal Thread Length for Bolt Lengths | ||||||||||
| Max | Min | Basic | Max | Min | Max | Min | Basic | Max | Min | Max | Min | ≤6 in | >6 in | ||
| 1/4 | 0.2500 | 0.260 | 0.237 | 7/16 | 0.438 | 0.425 | 0.505 | 0.484 | 1/16 | 0.188 | 0.150 | 0.030 | 0.010 | 0.750 | 1.000 |
| 5/16 | 0.3125 | 0.324 | 0.298 | 1/2 | 0.500 | 0.484 | 0.577 | 0.552 | 7/32 | 0.235 | 0.195 | 0.030 | 0.010 | 0.875 | 1.125 |
| 3/8 | 0.3750 | 0.388 | 0.360 | 9/16 | 0.562 | 0.544 | 0.650 | 0.620 | 1/4 | 0.268 | 0.226 | 0.030 | 0.010 | 1.000 | 1.250 |
| 7/16 | 0.4375 | 0.452 | 0.421 | 5/8 | 0.625 | 0.603 | 0.722 | 0.687 | 19/64 | 0.316 | 0.272 | 0.030 | 0.010 | 1.125 | 1.375 |
| 1/2 | 0.5000 | 0.515 | 0.482 | 3/4 | 0.750 | 0.725 | 0.866 | 0.826 | 11/32 | 0.364 | 0.302 | 0.030 | 0.010 | 1.250 | 1.500 |
| 5/8 | 0.6250 | 0.642 | 0.605 | 15/16 | 0.938 | 0.906 | 1.083 | 1.033 | 27/64 | 0.444 | 0.378 | 0.060 | 0.020 | 1.500 | 1.750 |
| 3/4 | 0.7500 | 0.768 | 0.729 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 1/2 | 0.524 | 0.455 | 0.060 | 0.020 | 1.750 | 2.000 |
| 7/8 | 0.8750 | 0.895 | 0.852 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 37/64 | 0.604 | 0.531 | 0.060 | 0.020 | 2.000 | 2.250 |
| 1 | 1.0000 | 1.022 | 0.976 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 43/64 | 0.700 | 0.591 | 0.090 | 0.030 | 2.250 | 2.500 |
| 1-1/18 | 1.1250 | 1.149 | 1.098 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 3/4 | 0.780 | 0.658 | 0.090 | 0.030 | 2.500 | 2.750 |
| 1-1/4 | 1.2500 | 1.277 | 1.223 | 1-7/8 | 1.875 | 1.812 | 2.165 | 2.066 | 27/32 | 0.876 | 0.749 | 0.090 | 0.030 | 2.750 | 3.000 |
| 1-3/8 | 1.3750 | 1.404 | 1.345 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 29/32 | 0.940 | 0.810 | 0.09 | 0.03 | 3.000 | 3.250 |
| 1-1/2 | 1.5000 | 1.531 | 1.470 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1 | 1.036 | 0.902 | 0.090 | 0.030 | 3.250 | 3.500 |
| 1-3/4 | 1.7500 | 1.785 | 1.716 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-5/32 | 1.196 | 1.054 | 0.120 | 0.040 | 3.750 | 4.000 |
| 2 | 2.0000 | 2.039 | 1.964 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-11/32 | 1.388 | 1.175 | 0.120 | 0.040 | 4.250 | 4.500 |
ASME B18.2.1 Hex Head Bolt Dimensions (Large Sizes: 2”–4”)
| Nominal Size or Basic Product Diameter | E | F | G | H | R | Lr | |||||||||
| Full-Size Body Diameter | Width Across Flats | Width Across Corners | Head Height | Radius of Fillet | Nominal Thread Length for Bolt Lengths | ||||||||||
| Max | Min | Basic | Max | Min | Max | Min | Basic | Max | Min | Max | Min | ≤6 in | >6 in | ||
| 2 | 2.0000 | 2.039 | 1.964 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-11/32 | 1.388 | 1.175 | 0.120 | 0.040 | 4.250 | 4.500 |
| 2-1/4 | 2.2500 | 2.305 | 2.214 | 3-3/8 | 3.375 | 3.262 | 3.897 | 3.719 | 1-1/2 | 1.548 | 1.327 | 0.190 | 0.060 | 4.750 | 5.000 |
| 2-1/2 | 2.5000 | 2.559 | 2.461 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 1-21/32 | 1.708 | 1.479 | 0.190 | 0.060 | 5.250 | 5.500 |
| 2-3/4 | 2.7500 | 2.827 | 2.711 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 1-13/18 | 1.869 | 1.632 | 0.190 | 0.060 | 5.750 | 6.000 |
| 3 | 3.0000 | 3.081 | 2.961 | 4-1/2 | 4.500 | 4.350 | 5.196 | 4.959 | 2 | 2.060 | 1.815 | 0.190 | 0.060 | 6.250 | 6.500 |
| 3-1/4 | 3.2500 | 3.335 | 3.210 | 4-7/8 | 4.875 | 4.712 | 5.629 | 5.372 | 2-3/16 | 2.251 | 1.936 | 0.190 | 0.060 | 6.750 | 7.000 |
| 3-1/2 | 3.5000 | 3.589 | 3.461 | 5-1/4 | 5.250 | 5.075 | 6.062 | 5.786 | 2-5/16 | 2.380 | 2.057 | 0.190 | 0.060 | 7.250 | 7.500 |
| 3-3/4 | 3.7500 | 3.858 | 3.726 | 5-5/8 | 5.625 | 5.437 | 6.495 | 6.198 | 2-1/2 | 2.572 | 2.241 | 0.190 | 0.060 | 7.750 | 8.000 |
| 4 | 4.0000 | 4.111 | 3.975 | 6 | 6.000 | 5.800 | 6.928 | 6.612 | 2-11/16 | 2.764 | 2.424 | 0.190 | 0.060 | 8.250 | 8.500 |

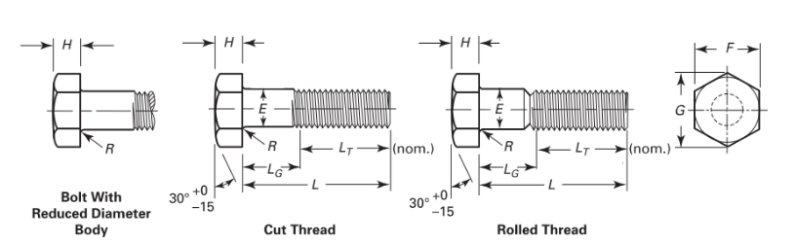

Dimension of Heavy Hex Bolt
| Nominal Size or Basic Product Diameter | E | F | G | H | R | Lr | |||||||||
| Full-Size Body Diameter | Width Across Flats | Width Across Corners | Head Height | Radius of Fillet | Nominal Thread Length for Bolt Lengths | ||||||||||
| Max | Min | Basic | Max | Min | Max | Min | Basic | Max | Min | Max | Min | ≤6 in | >6 in | ||
| 1/2 | 0.5000 | 0.515 | 0.482 | 7/8 | 0.875 | 0.850 | 1.010 | 0.969 | 11/32 | 0.364 | 0.302 | 0.03 | 0.01 | 1.250 | 1.500 |
| 5/8 | 0.6250 | 0.642 | 0.605 | 1-1/16 | 1.062 | 1.031 | 1.227 | 1.175 | 27/64 | 0.444 | 0.378 | 0.06 | 0.02 | 1.500 | 1.750 |
| 3/4 | 0.7500 | 0.768 | 0.729 | 1-1/4 | 1.250 | 1.212 | 1.443 | 1.383 | 1/2 | 0.524 | 0.455 | 0.06 | 0.02 | 1.750 | 2.000 |
| 7/8 | 0.8750 | 0.895 | 0.852 | 1-7/16 | 1.438 | 1.394 | 1.660 | 1.589 | 37/64 | 0.604 | 0.531 | 0.06 | 0.02 | 2.000 | 2.250 |
| 1 | 1.0000 | 1.022 | 0.976 | 1-5/8 | 1.625 | 1.575 | 1.876 | 1.796 | 43/64 | 0.700 | 0.591 | 0.09 | 0.03 | 2.250 | 2.500 |
| 1-1/8 | 1.1250 | 1.149 | 1.098 | 1-13/16 | 1.812 | 1.756 | 2.093 | 2.002 | 3/4 | 0.780 | 0.658 | 0.09 | 0.03 | 2.500 | 2.750 |
| 1-1/4 | 1.2500 | 1.277 | 1.223 | 2 | 2.000 | 1.938 | 2.309 | 2,209 | 27/32 | 0.876 | 0.749 | 0.09 | 0.03 | 2.750 | 3.000 |
| 1-3/8 | 1.3750 | 1.404 | 1.345 | 2-3/16 | 2.188 | 2.119 | 2.526 | 2.416 | 29/32 | 0.940 | 0.810 | 0.09 | 0.03 | 3.000 | 3.250 |
| 1-1/2 | 1.5000 | 1.531 | 1.470 | 2-3/8 | 2.375 | 2.300 | 2.742 | 2.622 | 1 | 1.036 | 0.902 | 0.09 | 0.03 | 3.250 | 3.500 |
| 1-3/4 | 1.7500 | 1.785 | 1.716 | 2-3/4 | 2.750 | 2.662 | 3.175 | 3.035 | 1-5/32 | 1.196 | 1.054 | 0.12 | 0.04 | 3.750 | 4.000 |
| 2 | 2.0000 | 2.039 | 1.964 | 2-1/8 | 3.125 | 3.025 | 3.608 | 3.449 | 1-11/32 | 1.388 | 1,175 | 0.12 | 0.04 | 4.250 | 4.500 |
| 2-1/4 | 2.2500 | 2.305 | 2.214 | 3-1/2 | 3.500 | 3.388 | 4.041 | 3.862 | 1-1/2 | 1.548 | 1.327 | 0.19 | 0.06 | 4.750 | 5.000 |
| 2-1/2 | 2.5000 | 2.559 | 2.461 | 3-7/8 | 3.875 | 3.750 | 4.474 | 4.275 | 1-21/32 | 1.708 | 1.479 | 0.19 | 0.06 | 5.250 | 5.500 |
| 2-3/4 | 2.7500 | 2.827 | 2.711 | 4-1/4 | 4.250 | 4.112 | 4.907 | 4.688 | 1-13/14 | 1.869 | 1.632 | 0.19 | 0.06 | 5.750 | 6.000 |
| 3 | 3.0000 | 3.081 | 2.961 | 4-5/8 | 4.625 | 4.475 | 5.340 | 5.102 | 2 | 2.060 | 1.815 | 0.19 | 0.06 | 6.250 | 6.500 |

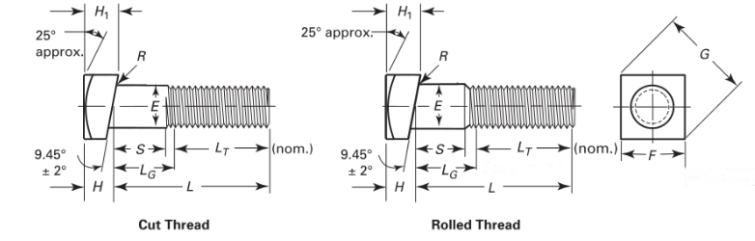

Dimension of Askew Head Bolt
| Nominal Size or Basic Product Diameter | E | F | G | H₁ | H | R | S | Lr | ||||||||
| Body Diameter | Width Across Flats | Width Across Corners | Head Height | Mid Height | Radius of Fillet | Maximum Unthreaded Length | Norminal Threaded Length for Bolt Lengths | |||||||||
| Max | Min | Basic | Max | Min | Max | Min | Max | Min | Ref. | Max | Min | Max | ≤6 in | >6 in | ||
| 3/8 | 0.375 | 0.388 | 0.360 | 9/16 | 0.562 | 0.544 | 0.795 | 0.747 | 0.317 | 0.277 | 0.250 | 0.030 | 0.010 | 0.250 | 1.000 | 1.250 |
| 1/2 | 0.500 | 0.515 | 0.482 | 3/4 | 0.750 | 0.725 | 1.061 | 0.995 | 0.411 | 0.371 | 0.328 | 0.030 | 0.010 | 0.312 | 1.250 | 1.500 |
| 5/8 | 0.625 | 0.642 | 0.605 | 15/16 | 0.938 | 0.906 | 1.326 | 1.244 | 0.520 | 0.480 | 0.422 | 0.060 | 0.020 | 0.344 | 1.500 | 1.750 |
| 3/4 | 0.750 | 0.768 | 0.729 | 1-1/8 | 1.125 | 1.088 | 1.591 | 1.494 | 0.614 | 0.574 | 0.500 | 0.060 | 0.020 | 0.406 | 1.750 | 2.000 |
| 7/8 | 0.875 | 0.895 | 0.852 | 1-5/16 | 1.312 | 1.269 | 1.856 | 1.742 | 0.723 | 0.683 | 0.594 | 0.060 | 0.020 | 0.438 | 2.000 | 2.250 |
| 1 | 1.000 | 1.022 | 0.976 | 1-1/2 | 1.500 | 1.450 | 2.121 | 1.991 | 0.801 | 0.761 | 0.656 | 0.090 | 0.030 | 0.500 | 2.250 | 2.500 |
Common Mistakes to Avoid When Checking Bolt Sizes
- Confusing Nominal & Actual Diameter: Nominal size is a reference – always measure physically (e.g., ½” bolt may measure 0.498”).
- Ignoring Thread Length: Insufficient thread engagement reduces load capacity; verify minimum lengths.
- Using Uncalibrated Tools: Only use calibrated calipers/micrometers – tape measures lack precision for tolerances.
- Misidentifying Head Type: Standard vs. heavy hex bolts have different dimensions – use the correct table.
- Disregarding Tolerances: Nominal match doesn’t guarantee compliance – always check allowable ranges.
Practical Applications: ASME B18.2.1 in Procurement & Fabrication
Procurement
Validate supplier quotes against ASME B18.2.1 – cross-check product data sheets to avoid non-compliant parts and production delays.
Fabrication
Design clearance holes (e.g., 0.516” for ½” bolts) and tooling using standard dimensions for seamless installation.
Quality Control
Inspect incoming batches with an ASME B18.2.1 checklist – reject non-compliant bolts to maintain production quality.
Maintenance
Use the standard to select replacement bolts – matching specs preserves equipment safety and performance.
