SS 304 Elbows Dimensions

SS 304 elbows are pipe fittings used to connect two sections of pipes to change the direction of pipes and water pipe systems. Common angles are 45°, 90° and 180°. Due to the excellent corrosion resistance, high strength and durability of stainless steel, they have a wide range of applications. They are commonly found in petrochemical, chemical, pharmaceutical, food and other industrial fields.

Due to the excellent corrosion resistance of stainless steel, structural components can maintain the integrity of engineering design. Chromium-containing stainless steel also combines mechanical strength and high ductility. It is easy to process and manufacture components and can meet the needs of architects and structural designers. Stainless steel elbows will not cause corrosion, pitting, rust or wear. Among building metal materials, stainless steel is still one of the high-strength materials.

ZIZI offers various styles and sizes of stainless steel elbows, elbow sizes range from 1/2 inch to 80 inches. It wall thickness range covers SCH 10, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS in accordance with ASME B16.9 standard.

Specification of ASTM A403 WP 304 Elbows

Specifications	ASTM A403 / ASME SA403
Size	1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Standards	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Thickness	5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75
Type	Seamless / Welded / Fabricated

ASTM A403 WP 304 Elbows Chemical Composition

CHEMICAL	LIMITS	C	Mn	P	S	Si	Ni	Cr
ASTM A403 WP304	MIN						8.0	18.0
ASTM A403 WP304	MAX	0.08	2.00	0.045	0.030	1.00	11.0	20.0
ASTM A403 WP304L	MIN						8.00	18.00
ASTM A403 WP304L	MAX	0.03	2.00	0.05	0.03	1.00	12.00	20.00

304/304L Stainless Steel Elbows Mechanical Property

MATERIAL	ASTM A403 WP304	ASTM A403 WP304L
T.S (MPA)	515 min	485 min
Y.S (MPA)	205 min	170 min
EL %	28 min	28 min

Stainless Steel 45 Degree Elbow Dimensions

Nominal Size		Outside Diameter at Bevel	Center to End
DN	NPS	OD	B
DN	NPS	OD	LR
15	1/2	21.3	16
20	3/4	26.7	19
25	1	33.4	22
32	1 1/4	42.2	25
40	1 1/2	48.3	29
50	2	60.3	35
65	2 1/2	73.0	44
80	3	88.9	51
90	3 1/2	101.6	57
100	4	114.3	64
125	5	141.3	79
150	6	168.3	95
200	8	219.1	127
250	10	273.0	159
300	12	323.8	190
350	14	355.6	222
400	16	406.4	254
450	18	457.0	286
500	20	508.0	318
550	22	559.0	343
600	24	610.0	381
650	26	660.0	406
700	28	711.0	438
750	30	762.0	470
800	32	813.0	502
850	34	864.0	533
900	36	914.0	565
950	38	965.0	600
1000	40	1016.0	632
1050	42	1067.0	660
1100	44	1118.0	695
1150	46	1168.0	727
1200	48	1219.0	759

Stainless Steel 90 Degree Elbow Dimensions

Nominal Size		Outside Diameter at Bevel	Center to End
Nominal Size		Outside Diameter at Bevel	90° Elbows
DN	NPS	OD	A
DN	NPS	OD	LR	SR
15	1/2	21.3	38
20	3/4	26.7	38
25	1	33.4	38	25
32	1 1/4	42.2	48	32
40	1 1/2	48.3	57	38
50	2	60.3	76	51
65	2 1/2	73.0	95	64
80	3	88.9	114	76
90	3 1/2	101.6	133	4、89
100	4	114.3	152	102
125	5	141.3	190	127
150	6	168.3	229	152
200	8	219.1	305	203
250	10	273.0	381	254
300	12	323.8	457	305
350	14	355.6	533	356
400	16	406.4	610	406
450	18	457.0	686	457
500	20	508.0	762	508
550	22	559.0	838	559
600	24	610.0	914	610
650	26	660.0	991	660
700	28	711.0	1067	711
750	30	762.0	1143	762
800	32	813.0	1219	813
850	34	864.0	1295	864
900	36	914.0	1372	914
950	38	965.0	1448	965
1000	40	1016.0	1524	1016
1050	42	1067.0	1600	1067
1100	44	1118.0	1676	1118
1150	46	1168.0	1753	1168
1200	48	1219.0	1829	1219

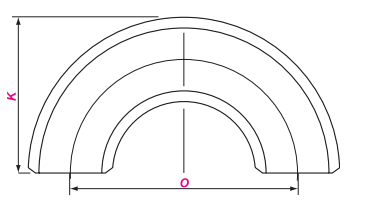

Stainless Steel 180 Degree Elbow Dimensions

Nominal Size		Outside Diameter at Bevel	Center to Center		Back to Face
Nominal Size		Outside Diameter at Bevel	180 Returns
DN	NPS	OD	O		K
DN	NPS	OD	LR	SR	LR	SR
15	1/2	21.3	76		48
20	3/4	26.7	76		51
25	1	33.4	76	51	56	41
32	1 1/4	42.2	95	64	70	52
40	1 1/2	48.3	114	76	83	62
50	2	60.3	152	102	106	81
65	2 1/2	73.0	190	127	132	100
80	3	88.9	229	152	159	121
90	3 1/2	101.6	267	178	184	140
100	4	114.3	305	203	210	159
125	5	141.3	381	254	262	197
150	6	168.3	457	305	313	237
200	8	219.1	610	406	414	313
250	10	273.0	762	508	518	391
300	12	323.8	914	609	619	467
350	14	355.6	1067	711	711	533
400	16	406.4	1219	813	813	610
450	18	457.0	1372	914	914	686
500	20	508.0	1524	1016	1016	762
550	22	559.0	1676	1118	1118	838
600	24	610.0	1829	1219	1219	914

90 Degree Long Radius Elbow Weight Chart in KG

DN	NPS	Sch10	Sch20	Sch30	STD	Sch40	Sch60	XS	Sch80	Sch100	Sch120	Sch160	XXS
15	1/2	0.06	–	0.07	0.08	0.08	–	0.11	0.11	–	–	0.13	0.17
20	3/4	0.08	–	0.09	0.11	0.11	–	0.14	0.14	–	–	0.19	0.24
25	1	0.13	–	0.14	0.16	0.16	–	1.12	1.12	–	–	0.28	0.36
32	1 1/4	0.21	–	0.24	0.28	0.28	–	0.24	0.24	–	–	0.47	0.64
40	1 1/2	0.28	–	0.35	0.4	0.4	–	0.53	0.53	–	–	0.71	0.94
50	2	0.47	–	0.59	0.71	0.71	–	0.98	0.98	–	–	1.46	1.76
65	2 1/2	0.79	–	1.32	1.42	1.42	–	1.87	1.87	–	–	2.45	3.35
80	3	1.16	–	1.95	2.22	2.22	–	3.01	3.01	–	–	4.20	5.45
90	3 1/2	1.55	–	2.62	3.12	3.12	–	4.28	4.28	–	–	–	–
100	4	2.02	–	3.39	4.22	4.22	–	5.86	5.86	–	7.44	8.81	10.8
125	5	3.46	–	–	7.15	7.15	–	10.2	10.2	–	13.2	16.1	18.9
150	6	4.98	–	–	11.2	11.2	–	16.8	16.8	–	21.4	26.7	31.3
200	8	9.57	17.6	19.4	22.4	22.4	28.0	34.1	34.1	40	47.7	58.6	56.9
250	10	16.7	27.5	33.6	39.7	39.7	53.7	53.7	63.2	75.5	87.6	113	102
300	12	25.9	39.3	51.5	58.3	62.9	86	76.9	104	126	148	188	148
350	14	34.7	62.5	74.9	74.9	87.1	117	98.9	146	180	207	259	–
400	16	45.4	82.0	98.3	98.3	130	169	130	215	259	302	385	–
450	18	56.2	104	145	125	185	244	165	302	367	431	545	–
500	20	82.2	154	204	154	242	326	204	410	502	581	744	–
550	22	143	187	248	187	–	426	248	541	654	763	974	–
600	24	170	223	331	223	403	561	295	698	865	1011	1277	–

90 Degree Short Radius Elbow Weight Chart in KG

DN	NPS	SCH20	SCH30	STD	SCH40	SCH60	XS	SCH80	SCH100	SCH120	SCH160	XXS
25	1		0.069	0.11	0.11		0.14	0.14			0.18	0.24
32	1 1/4		0.16	0.19	0.19		0.25	0.25			0.31	0.43
40	1 1/2		0.23	0.27	0.27		0.36	0.36			0.48	0.63
50	2		0.39	0.48	0.48		0.66	0.66			0.98	1.18
65	2 1/2		0.89	0.95	0.95		1.26	1.26			1.65	2.26
80	3		1.30	1.48	1.48		2.01	2.01			2.80	3.64
90	3 1/2		1.76	2.09	2.09		2.87	2.87
100	4		2.28	2.83	2.83		3.93	3.93		4.99	5.91	7.23
125	5			4.78	4.78		6.80	6.80		8.84	10.08	12.6
150	6			7.42	7.42		11.1	11.2		14.2	17.7	20.8
200	8	11.7	12.9	14.9	14.9	18.6	22.7	22.7	26.6	31.7	39.0	37.9
250	10	18.3	22.4	26.5	26.5	35.8	42.1	42.1	50.3	58.4	75.6	68.1
300	12	26.2	34.4	38.9	42.0	57.4	69.6	69.6	84.3	98.5	126	98.5
350	14	41.8	50.0	50.0	58.2	78.0	97.3	97.3	120	138	173
400	16	54.6	65.4	65.4	86.5	112	143	143	172	201	256
450	18	69.3	96.6	83.0	123	162	201	201	245	287	363
500	20	103	136	103	161	218	273	273	335	388	496
550	22	125	165	125		284	361	361	436	509	649
600	24	149	221	149	269	374	466	466	577	675	852
650	26	231		174
700	28	269	334	203
750	30	309	385	233
800	32	352	439	265	482
850	34	398	496	300	545
900	36	446	555	336	664
950	38			374
1000	40			415
1050	42			458
1100	44			503
1150	46			550
1200	48			599
1300	52			738
1400	56			854
1500	60			983
1600	64			1116
1700	68			1264
1800	72			1418
1900	76			1581
2000	80			1751

Stainless Steel Elbow Tolerance

Nominal Size		All Fittings		45°&90° Elbows	180° Returns
DN	NPS	OD 3) 4)	ID 3)	A B C M	O	K	U
15 – 65	1/2 – 21/2	+1.6 -0.8	± 0.8	± 2	± 6	± 6	± 1
80 – 90	3 – 31/2	± 1.6	± 1.6	± 2	± 6	± 6	± 1
100	4	± 1.6	± 1.6	± 2	± 6	± 6	± 1
125 – 200	5 – 8	+2.4 -1.6	± 1.6	± 2	± 6	± 6	± 1
250 – 450	10 – 18	+4.0 -3.2	± 3.2	± 2	± 10	± 6	± 2
500 – 600	20 – 24	+6.4 -4.8	± 4.8	± 2	± 10	± 6	± 2
650 – 750	26 – 30	+6.4 -4.8	± 4.8	± 3	—	—	—
800 – 1200	32 – 48	+6.4 -4.8	± 4.8	± 5	—	—	—
1300 – 1500	52 – 60	+6.4 -4.8	± 4.8	± 5	—	—	—
1600 – 1700	64 – 68	+6.4 -4.8	± 4.8	± 5	—	—	—
1800 – 2000	72 – 80	+6.4 -4.8	± 4.8	± 5	—	—	—

How to Get Accurate Size Information?

To get specific SS 304 elbow size, you need to:

Determine the nominal diameter (NPS/DN): Choose the appropriate size according to your piping system.

Determine the elbow type: 90 degree long / short radius, 45 degree long radius, 180 degree long radius, etc.

Determine the wall thickness grade (Schedule): This is closely related to the pressure grade of the pipeline.

Check the corresponding standards: Check the corresponding A standard chart according to the project requirements.

Contact the supplier: ZIZI, as a stainless steel pipe fittings supplier, will provide a detailed product size table. We can also provide customized information according to your needs.
