8″ Equal Tee ASTM A860 WPHY 65

~~USD$190~~ USD$185

8" SCH XXS EQUAL TEE SEAMLESS BW ASTM A860 WPHY 65 ASME B16.9

SKU: CZ511

General Details
Technical Info
Related Products

General Details

Steel Pipe Tee Fittings

Top quality manufacturer of butt weld pipe fittings Zizi supplies 8″ Sch XXS Equal Tee Seamless BW ASTM A860 WPHY 65 ASME B16.9 for Kazakhstan.

Steel pipe tee is one common type of butt weld fittings. What’s more? They are 90 degree elbows and bends, 45 degree elbows and bends, equal tees, reducer tees, concentric and eccentric reducers, stud end and pipe caps.

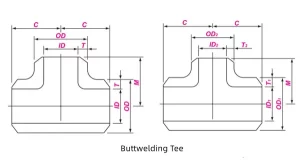

Equal Tee Dimensions

Nominal Size		Outside Diameter at Bevel	Center to End
DN	NPS	OD1×OD2	C	M
15	1/2	21.3	25	25
20	3/4	26.7	29	29
25	1	33.4	38	38
32	11/4	42.2	48	48
40	11/2	48.3	57	57
50	2	60.3	64	64
65	21/2	73.0	76	76
80	3	88.9	86	86
90	31/2	101.6	95	95
100	4	114.3	105	105
125	5	141.3	124	124
150	6	168.3	143	143
200	8	219.1	178	178
250	10	273.0	216	216
300	12	323.8	254	254
350	14	355.6	279	279
400	16	406.4	305	305
450	18	457.0	343	343
500	20	508.0	381	381
550	22	559.0	419	419
600	24	610.0	432	432
650	26	660.0	495	495
700	28	711.0	521	521
750	30	762.0	559	559
800	32	813.0	597	597
850	34	864.0	635	635
900	36	914.0	673	673
950	38	965.0	711	711
1000	40	1016.0	749	749
1050	42	1067.0	762	711
1100	44	1118.0	813	762
1150	46	1168.0	851	800
1200	48	1219.0	889	838
1300	52	1321.0	965	914
1400	56	1422.0	1041	965
1600	64	1626.0	1194	1092
1700	68	1727.0	1270	1168
1800	72	1829.0	1320	1245
1900	76	1930.0	1422	1320
2000	80	2032.0	1499	1397

Standard: ASME B 16.9

Size Range: 3/4″ to 48″ / DN20 to DN1200

Thickness: Sch 20, STD, 40, 80, 100,120, 140, 160, XXS

Form: Seamless or Welded Equal Tee

Surface: Black Primer, Galvanized, PE Coated

Material Grades of 8 Equal Tee

Stainless Steel: ASTM A403 WP304/304L, WP316/316L, WP321, WP317, WP310, WP321

Carbon Steel : ASTM A234 WPB, A420 WPL3, WPL6, WPL9, WPHY 42, 52, 60, 65, 70.

Duplex Steel : ASTM A815 UNS S31803, S32205, S32550, S32750, S32760

Alloy Steel: ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

Equal Tee Weight Chart in kg

EQUAL TEE BW WEIGHT
DN	NPS	10S	20	STD	40	XS	80	160	XXS
15	1/2	0.1		0.2	0.2	0.2	0.2
20	3/4	0.2		0.2	0.2	0.3	0.3
25	1	0.3		0.3	0.3	0.5	0.5
32	11/4	0.5		0.6	0.6	0.7	0.7
40	11/2	0.7		0.9	0.9	1.3	1.3	1.5	1.3
50	2	1.2		1.5	1.5	2.2	2.2	2.7	3.4
65	21/2	2.5		2.7	2.7	3	3	3.1	3.8
80	3	1.9		3.8	3.8	4.3	4.3	5.5	6.1
90	31/2	2.6		4.6	4.6	6	6
100	4	3.1		6.5	6.5	7.7	7.7	10.2	12.9
125	5	5.2		9.7	9.7	13.5	13.5	19.8	25.7
150	6	7.2		14	14	19.3	19.3	34	30.6
200	8	11.5	17.5	24.5	24.5	34.5	34.5	50	47.7
250	10	19.2	28	41.3	41.3	58.4	67.5	111	84.7
300	12	30.5	42.6	65	69	76.5	105	158	129
350	14	40.5	64.5	83	96	104	142	232
400	16	48	78.2	110	120	120	187	335
450	18	58	102	132	170	159	263	564
500	20	85	168	168	240	192	356	756
550	22	92	185	185		209	416	1002
600	24	138	222	222	345	251	548	1215

How to Calculate Weight of Equal Tee

Calculation Formula: 0.02466*（S+1.5）*[D-(S+1.5)]*(3C-D/2)/1000

S= wall thickness in mm

D= outside diameter in mm

C= length*[out diameter-(thickness+2)]*(thickness*2)*0.02466*length, the unit is mm.

ASTM A860 WPHY 65 Pipe Fittings

Package

We marked all ASTM A860 WPHY 65 Pipe Fittings with Grade, Lot No, Size, Standard and Thickness. Our workers packed 8 equal tee into wooden cases. Carbon steel butt weld fittings will be blasting and painting before packing and shipping.

ASTM A860 WPHY 65 EQUAL TEE PACKAGE

Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.

Inspection

Visual the surface of Equal Tee body. Such as dents, die marks, porosity, undercuts etc.
Check the marking. Such as Size, Material Code and Grade, Thickness, Heat No.
Measure the size. Such as the diameter, thickness, height of end to end.

Measure thickness of Sch XXS Equal Tee
