Concentric Swage Nipple

USD13 USD12

2" x 1"Schedule 80 Concentric Swage Nipple TOE ASTM A182 F12 MSS SP-95

SKU: SH128 Category:
General Details

Concentric Swage Nipple Manufacturer

Best price for Concentric Swage Nipple and manufacture them in the best quality materials and the most complete forms, dimensions can be customized.

Swage Nipple is a kind of pipe reducer products that used to connect pipes in different dimensions. It has various end forms and TBE (threaded both end) type is very prevalent among concentric swage nipples.

2 x 1 Swage Nipple Dimensions

2 x 1 Swage Nipple Dimensions

2 x 1 Swage Nipple Dimensions

Standard: BS3799, MSS SP-95

Size: 1/4 to 12 inch / DN8-DN300

Thickness: Sch 10s, Sch 20, STD, Sch 40, XS, Sch 80

Form: Concentric Swage and Eccentric Swage Fittings

Concentric Swage Weight

Concentric Swage Weight

Concentric Swage Weight

Material Grades of Swage Nipple and Reducer

Stainless Steel: ASTM A182 F316/316L, F304/304L, F317, F321, F310

Duplex Steel: ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S32760

Carbon Steel: ASTM A106 B, A333 Grade 3, 6, 9. API 5L X52, X60, X65, X70

Alloy Steel: ASTM A182 F1, F5, F9, F11, F12, F22, F91

Pipe Nipple End Types

Pipe Nipple End Types

Pipe Nipple End Types

Swage Types: TOE, TBE, POE, PBE, BOE, BBE

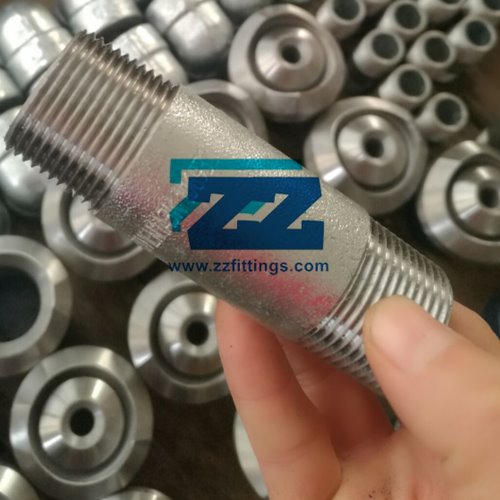

Threaded Pipe Nipple Reducer

Package

We marked all Concentric Swage Nipples with Grade, Lot No, Size, Standard and Thickness Schedule. The workers surfaced all ASTM A182 F12 Swage Nipples with anti-rust oil, then sleeved them into plastic bag individually, put them in carton and wooden cases, finally bundled packages with nylon rope.

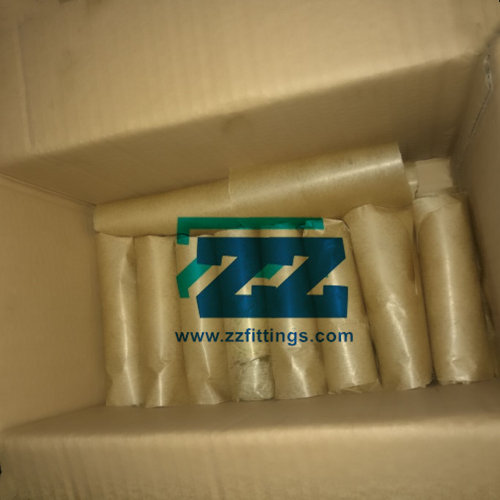

Package of Threaded Swage Nipple

Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. great care is taken during operation and transportation.

Inspection

  1. Visual the surface of reducer fittings body. Such as dents, die marks, porosity, undercuts.
  2. Check the marking. Such as size, material code, material grade, thickness, heat no.
  3. Measure dimensions. Such as outside diameter, wall thickness, length.
  4. Test thread of threaded swage with Go-No Go Gauge.

Advantages

  • Good Quality
  • Fast Delivery
  • Safe Package
  • Abundant Stock
  • Reasonable Price
  • Reliable Shipment
Technical Info

ASTM A182 F12 PROPERTIES

ASTM A182 F12 PROPERTIES

ASTM A182 F12 PROPERTIES
