Threadolet Dimensions

3000 Outlets

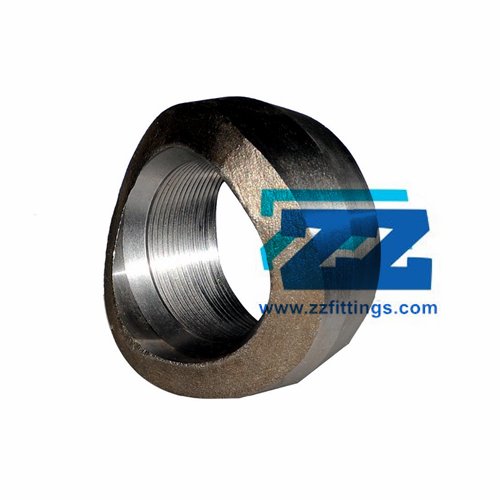

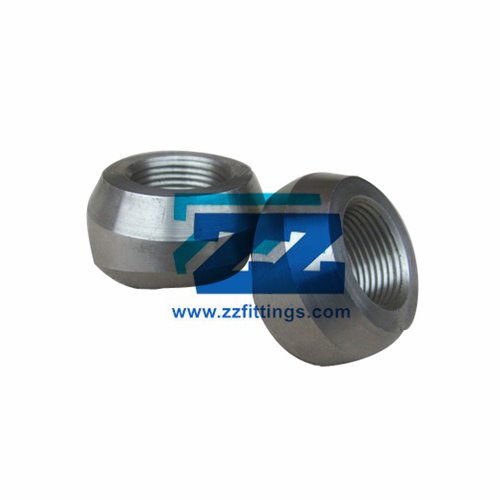

We manufacture and supply carbon steel Threadolet Dimensions from 1/2″ to 4″ in pressure of 3000lb and 6000lb, the most of thread types are BSP and NPT.

What’s the other types of outlets? They are Weldolets, Sockolets, Elbolets, Latrolet and Nipolets.

Threadolet VS Weldolet

When you use a weldolet,  you need to weld a pipe or fitting directly to the branch fitting, and a threadolet, you should screw the connecting pipe or fitting (e.g. valve) to the branch connection.

Threadolet Dimensions

Run Pipes Nominal Size		Branch Nominal Size		Length		OD of Fitting		OD at End of Branch		Length of Thread	Cut Hole Dia.
DN	NPS	DN	NPS	A		D1 min		D2 min		L2 min	d1 nom
				3000	6000	3000	6000	3000	6000		3000	6000
8-900	1/4-36	6	1/8	19		27		22		6.7	16
10-900	3/8-36	8	1/4	19		27		22		10.2	16
15-900	1/2-36	10	3/8	21		30		25		10.4	19
20-900	3/4-36	15	1/2	25	32	38	45	33	42	13.6	24	19
25-900	1-36	20	3/4	27	37	47	52	39	48	13.9	30	25
32-900	11/4-36	25	1	33	40	56	63	48	58	17.3	36	33
40-900	11/2-36	32	11/4	33	41	66	72	58	67	18	45	38
50-900	2-36	40	11/2	35	43	75	83	64	77	18.4	51	49
65-900	21/2 -36	50	2	38	52	90	104	77	93	19.2	65	59
80-900	3-36	65	21/2	46		105		94		28.9	76
100-900	4-36	80	3	51		124		114		30.5	94
125-900	5-36	100	4	57		154		140		33	121

Standard: MSS-SP-97, ASME B16.11

Run Pipes diameter range: DN8– 300 / NPS1/4 – 36

Branch diameter range: DN10-100/ NPS 1/2-4

Pressure rate: 3000# and 6000#

Thread: BSPP , BSPT , NPT, PT, PF

Material Grades of Thread Olet ASME

Duplex Steel: ASTM A182 F51, F53, F55, S31803, S32205, S32550, S32750, S32760

Alloy Steel Threadolet : ASTM A182 F1, F5, F9, F11, F12, F22, F91

Carbon Steel : ASTM A105, A694 F52, F60, F65, F70, A350 LF2, LF3

Stainless Steel: ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321

Threadolet Weight Chart in KG

Branch Nomina Size		THRD Outlet
DN	NPS	3000	6000
6	1/8	0.05
8	1/4	0.05	1
10	3/8	0.09
15	1/2	0.17	0.32
20	3/4	0.22	0.47
25	1	0.43	0.65
32	1/4	0.61	0.96
40	11/2	0.69	1.28
50	2	1.10	2.15
65	21/2	1.52
80	3	2.50	–
90	31/2	–	–
100	4	4.10	–

Threadolet Thread Standards Explained: BSP vs NPT

When selecting a Threadolet, choosing the correct thread standard is crucial for ensuring a perfect fit and leak-free connection. The two most common thread types are BSP and NPT — but what’s the difference?

BSP (British Standard Pipe)

Used mainly in Europe, Asia, and the UK

Thread angle: 55°

Comes in BSPP (parallel) and BSPT (tapered) types

Tighter fit achieved with sealing rings or washers

For threadolets requiring the BSP thread standard, we offer a dedicated product range, which you can view on our [BSP thread threadolet]dedicated product page.

NPT (National Pipe Thread)

Commonly used in North America

Thread angle: 60°

Always tapered, creating a mechanical seal when tightened

Requires thread sealant or Teflon tape

In Threadolet fittings, selecting the right thread type ensures compatibility with your piping system — preventing leaks, cross-threading, or installation issues.

2 NPT Threadolet

Package

We marked all carbon steel forged fittings with Grade, Lot No, Size, Standard and Pressure Ratings. The workers will sleeve 2 inch NPT Threadolet into plastic bag individually, put them in cartons and wooden cases, finally bundled wooden cases with nylon rope.

Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. great care is taken during operation and transportation.

Inspection

1. Visual the surface of Threaded Outlet Fittings. Such as dents, die marks, porosity, undercuts.
2. Check the marking. Such as size, material code, grade, thickness, heat No.
3. Measure the dimensions. Such as run threadolet dimension, branch dimension, wall thickness.
