90 Degree Threaded Elbow

USD9 USD8

90 Degree Threaded Elbow 1" 3000lb BSPT ASTM A105 ASME B16.11

SKU: SH132 Category:
General Details

Threaded Elbow Fittings

Zizi Engineering always offer attractive price and supply good quality of 90 Degree Threaded Elbow 1″ 3000 LB BSPT ASTM A105 ASME B16.11 for Thailand.

We manufactured, tested and certified carbon steel threaded fittings in accordance wtih ASME 3A-105N & ASTM A105N Normalized. What’s other types? They are threaded elbows, tees, couplings, caps, plugs, bushings, unions and nipples.

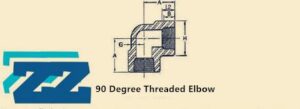

90 Degree Threaded Elbow Dimensions

90 Degree Threaded Elbow Dimensions

90 Degree Threaded Elbow Dimensions

Standard: ASME/ANSI B16.11, BS3799

Size: 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″

Pressure Ratings: Class 2000 , 3000 , 6000

Surface: Anti-rust Oil or Galvanized

Form: Straight and Reducer Elbow

90 Degree Elbow Weight Chart

90 Degree Elbow Weight

90 Degree Elbow Weight

Material Grades of BSPT 90 Degree Elbow

Stainless Steel Elbow

ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321

Carbon Steel Elbow

ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70

Alloy Steel Elbow

ASTM A182 F1, F5, F9, F11, F12, F22, F91

Duplex Steel Pipe Elbow

ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

Package of 1 BSP Elbow

We marked all Carbon Steel Forged Fittings with Grade, Lot No, Size, Standard and Pressure. Our workers surfaced anti-rust oil on ASTM A105 Threaded Elbows, then wrapped 1″ BSP Elbows with water-proof material, put 90 degree elbows into wooden cases, finally bundled wooden cases with nylon rope.

1 Inch 90 Degree Elbow Package

1 Inch 90 Degree Elbow Package

Clear labels are tagged on the outside of the package for easy identification of the quantity and product. Great care is taken during operation and transportation

Inspection of 3000LB Threaded Elbow

  1. Visual the surface of threaded elbow body.
  2. Check the marking “90 Elbow 1” 3000lb BSPT A105 B16.11 168″
  3. Measure dimensions. Such as outside diameter, wall thickness, length of thread.
  4. Test thread of 90 degree threaded elbow with Go-No Go Gauge.
1 BSP ELBOW

1 BSP ELBOW

BSPP VS BSPT

Parallel (straight) threads, British Standard Pipe Parallel thread (BSPP; originally also known as British Standard Pipe Fitting thread/BSPF and British Standard Pipe Mechanical thread/BSPM), which have a constant diameter; denoted by the letter G.

Taper threads, British Standard Pipe Taper thread (BSPT), whose diameter increases or decreases along the length of the thread; denoted by the letter R.

Technical Info

ASTM A105 Forged Fittings Datasheet

ASTM A105 Forged Fittings Datasheet

ASTM A105 Forged Fittings Datasheet

DWG & SPEC

Specification & Drawing for Threaded Pipe Elbow

Threaded Elbow Drawing

Threaded Elbow Drawing & Dimensions

Nominal Size Center-to-End Outside Diameter of Band Wall Thickness Length of Thread
DN NPS
90 Elbows A
45 Elbows A H G min L 5 min L 2 min
2000 3000 6000 2000 3000 6000 2000 3000 6000 2000 3000 6000
6 1/8 21 21 25 17 17 19 22 22 25 3.18 3.18 6.35 6.4 6.7
8 1/4 21 25 28 17 19 22 22 25 33 3.18 3.3 6.6 8.1 10.2
10 3/8 25 28 33 19 22 25 25 33 38 3.18 3.51 6.98 9.1 10.4
15 1/2 28 33 38 22 25 28 33 38 46 3.18 4.09 8.15 10.9 13.6
20 3/4 33 38 44 25 28 33 38 46 56 3.18 4.32 8.53 12.7 13.9
25 1 38 44 51 28 33 35 46 56 62 3.68 4.98 9.93 14.7 17.3
32 1 1/4 44 51 60 33 35 43 56 62 75 3.89 5.28 10.59 17 18
40 1 1/2 51 60 64 35 43 44 62 75 84 4.01 5.56 11.07 17.8 18.4
50 2 60 64 83 43 44 52 75 84 102 4.27 7.14 12.09 19 19.2
65 2 1/2 76 83 95 52 52 64 92 102 121 5.61 7.65 15.29 23.6 28.9
80 3 86 95 106 64 64 79 109 121 146 5.99 8.84 16.64 25.9 30.5
100 4 106 114 114 79 79 79 146 152 152 6.55 11.18 18.67 27.7 33
